Connect Command

The connect command can be used to connect multiple filter channels with each other.

Ussage

Requires a scene to be selected in current CLI context.

connect <source channel ID template> <destination channel ID templates> [--guard <smod:X>|<dmod:X>|<dt:DT>|<sfid_contains:STR>|<dfid_contains:STR>|<schan_contains:STR>|<dchan_contains:STR>] [--source-count <count>] [--destination-count <count>]

Source channel ID template is a Jinja template (it is recommended to encode it as a string in the command) that must produce a combination of <filter ID>:<channel name>. The same goes for the destination channels, although a list can be provided. In addition, --source-count and --destination-count can be used to iterate over channels. These iterations are zero indexed and can be queried inside the templates with and. Furthermore, there is a set of supported filters for the templating available.

• add(arg) adds arg to a number
• sub(arg) subtracts arg from a number
• mul(arg) multiplies a number with arg
• div(arg) divides a number by arg
• mod(arg) calculate number modulus arg

Within iterations, the channel guards can be used to skip connections. The following checks are available:

• smod:<X> Only allows the connection to be made if the source iteratior modulo X yields zero.
• dmod:<X> Only allows the connection to be made if the destination iteratior modulo X yields zero.
• dt:<DT> Only allows a connection if the channel data type is of type DT. Available data types are:
  • 8bit
  • 16bit
  • float
  • color
• sfid_contains:<str> Only allows a connection if str is part of the source filter ID.
• dfid_contains:<str> Only allows a connection if str is part of the destination filter ID.
• schan_contains:<str> Only allows a connection if str is part of the source channel name.
• dchan_contains:<str> Only allows a connection if str is part of the destination channel name.

Example

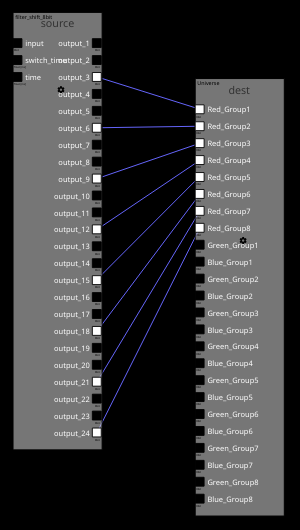

The following code snipped connects a shift filter of type 8bit and ID source with an output filter for RGB Led bars called dest in scene with ID 0. Only the red channels are connected.

select scene 0
connect "source:output_{{si|add(1)}}" "dest:Red_Group{{si|div(3)|add(1)}}" --source-count 24

Errata

Using this command might require reopening of filter pages in the editor in order to view the created connections.
